Author Topic: Skype calls in RadioBOSS  (Read 54990 times)

0 Members and 1 Guest are viewing this topic.

djsoft

  • Administrator
  • Posts: 7440
    • http://www.djsoft.net
Skype calls in RadioBOSS
« on: June 09, 2011, 05:16:12 AM »
I. Setting up Virtual Audio Cable

1. Download Virtual Audio Cable. Author's website: http://software.muzychenko.net/eng/vac.htm#trial or using direct link on our site: http://dl.djsoft.net/vac413.zip.

2. Start Audio Repeater: Start->All Programs->Virtual Audio Cable->Audio Repeater (MME).
Set:
Wave in: audio card's input where you have microphone connected
Wave out: "Line 1 (Virtual Audio Cable)"
It's also recommended to change buffer size to minimum and set the "High" priority (to decrease latency).


II. Setting up Skype
In Skype, select the microphone you're using and output device: "Line 1 (Virtual Audio Cable)".


III. Setting up RadioBOSS

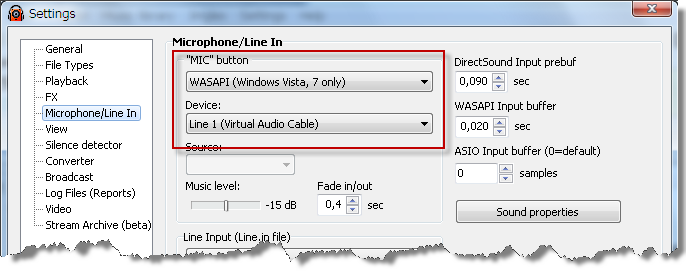

In RadioBOSS, enter Settings->Microphone/Line.In. In the "MIC" button settings select
Device: "Line 1 (Virtual Audio Cable)"
Now, when you click "MIC" button in RadioBOSS, you'll hear the Skype conversation. When there's no Skype call, just microphone will work.




If you don't want to hear yourself while speaking, the setup is a bit more complicated.

Thanks to wutzthedeal user (TruthOnTapShow: http://www.facebook.com/TruthOnTapShow), we have the instruction on how to do it.
(original post: http://www.djsoft.net/smf/index.php/topic,2323.msg13611.html#msg13611)

Install VAC, set two cables, set up three MME repeaters by opening three instances of it; run Mic to Line 1, Line 2 to Line 1, then Line 2 to headset.  You should NOT be hearing your own voice echo, nor the caller their voice.

In Skype or Google Voice (or similar) Set input to mic and output to line 2.  I would advise unchecking any automatic adjustments within your voip program.

In RadioBOSS, go in and set input to Line 1.  Check the output to encoders only (I did this and I think it's required; will correct if wrong, but it works this way).  Don't tick push to talk if you plan on talking a lot; that would require you to hold the "mic" button down during your broadcast from the main screen.  Also, DON'T FORGET to turn on the mic by tapping that button on the main screen.  Since you won't be able to see your mic input bouncing up and down on a meter until the newer version of RB comes out, just download the free app Pin It, and pin the Mic to Line 1 repeater window open, which will "stay on top" and serve as a voice input meter so you know if there is a sudden problem.  Calls and music sound clean and crisp.  This looks like a really solid program.



Alternative setup: http://www.djsoft.net/smf/index.php/topic,2323.msg13990.html#msg13990
+ video: http://youtu.be/dHbHm_gSus8



Setup which uses Voice Meeter instead of VAC: http://www.djsoft.net/smf/index.php/topic,2323.msg14324.html#msg14324


« Last Edit: January 05, 2014, 07:11:45 AM by djsoft »
Dmitry  •  DJSoft.Net Team  •  Email: support@djsoft.net

Kroakster

  • Posts: 43
    • Algarkirk Village Radio
Re: Skype calls in RadioBOSS
« Reply #1 on: July 18, 2012, 05:33:24 PM »
If this works it'll be the best thing since sliced bread as it's just what i was looking for..  thank you and will try it out on next broadcast..

bobby

  • Posts: 291
Re: Skype calls in RadioBOSS
« Reply #2 on: December 23, 2012, 08:50:32 AM »
Hey djsoft

you need to update your Virtual audio cables download link on here

because its version 4.12 now

thanks

djsoft

  • Administrator
  • Posts: 7440
    • http://www.djsoft.net
Re: Skype calls in RadioBOSS
« Reply #3 on: December 24, 2012, 05:47:15 AM »
Yes, you're right.
Dmitry  •  DJSoft.Net Team  •  Email: support@djsoft.net

flous

  • Posts: 9
Re: Skype calls in RadioBOSS
« Reply #4 on: June 16, 2013, 07:46:02 AM »
Do you know an other programme? Because I can´t install Virtual Audio Cabel, everytime when I try it, I get a bluescreen  ???

djsoft

  • Administrator
  • Posts: 7440
    • http://www.djsoft.net
Re: Skype calls in RadioBOSS
« Reply #5 on: June 16, 2013, 02:18:55 PM »
There are other "virtual cable" programs - you can try Google to find those. But Virtual Audio Cable is the best one IMO.
Dmitry  •  DJSoft.Net Team  •  Email: support@djsoft.net

flous

  • Posts: 9
Re: Skype calls in RadioBOSS
« Reply #6 on: June 17, 2013, 10:48:16 AM »
Thanks,

it works now. But I have a new problem. I can hear the skype conversation, but I can hear myself, too. It's hard to talk, when you always hear yourself...  :o

djsoft

  • Administrator
  • Posts: 7440
    • http://www.djsoft.net
Re: Skype calls in RadioBOSS
« Reply #7 on: June 18, 2013, 11:38:12 AM »
Do you hear yourself when MIC button is not pressed ion RB? If so, disable microphone playback in the sound card settings.
Dmitry  •  DJSoft.Net Team  •  Email: support@djsoft.net

pety

  • Guest
Re: Skype calls in RadioBOSS
« Reply #8 on: July 12, 2013, 06:30:36 PM »
Tested two hours. I hear what I speak and I also hear what skype caller speaks. The problem is that RadioLogger records nothing from skype, but Total Recorder does. That's intriguing.

djsoft

  • Administrator
  • Posts: 7440
    • http://www.djsoft.net
Re: Skype calls in RadioBOSS
« Reply #9 on: July 13, 2013, 06:10:39 AM »
Tested two hours. I hear what I speak and I also hear what skype caller speaks. The problem is that RadioLogger records nothing from skype, but Total Recorder does. That's intriguing.
What source did you select in RadioLogger?
Dmitry  •  DJSoft.Net Team  •  Email: support@djsoft.net

pety

  • Guest
Re: Skype calls in RadioBOSS
« Reply #10 on: July 13, 2013, 06:12:32 AM »
Tested two hours. I hear what I speak and I also hear what skype caller speaks. The problem is that RadioLogger records nothing from skype, but Total Recorder does. That's intriguing.
What source did you select in RadioLogger?
Both: Auto Mix and LineIN

djsoft

  • Administrator
  • Posts: 7440
    • http://www.djsoft.net
Re: Skype calls in RadioBOSS
« Reply #11 on: July 13, 2013, 06:35:07 AM »
Tested two hours. I hear what I speak and I also hear what skype caller speaks. The problem is that RadioLogger records nothing from skype, but Total Recorder does. That's intriguing.
What source did you select in RadioLogger?
Both: Auto Mix and LineIN
In case of Line.In - it just records what's on that input, it can't remove Skype conversation from it.
Auto Mix - is it some sort of Stereo Mix on Windows XP? It depends on sound card what will be recorded through that input and RadioLogger doesn't have control over it.
Dmitry  •  DJSoft.Net Team  •  Email: support@djsoft.net

Indie Radio Network

  • Posts: 107
    • Indie Radio Network
Re: Skype calls in RadioBOSS
« Reply #12 on: August 06, 2013, 09:03:39 AM »
Does this work the same way in 4.9 Dmitry?
Thank You,
Tom Raymond
Owner-Indie Radio Network
Mt. Pleasant, MI USA
http://www.indieradionetwork.net

djsoft

  • Administrator
  • Posts: 7440
    • http://www.djsoft.net
Re: Skype calls in RadioBOSS
« Reply #13 on: August 06, 2013, 11:48:59 AM »
Does this work the same way in 4.9 Dmitry?
Yes, generally it's the same. In RB 4.9 the Mic/Line.In settings look different, that's the only difference.
Dmitry  •  DJSoft.Net Team  •  Email: support@djsoft.net

Indie Radio Network

  • Posts: 107
    • Indie Radio Network
Re: Skype calls in RadioBOSS
« Reply #14 on: August 06, 2013, 02:49:22 PM »
Yeah, I did it this morning and switched from the cable the mic was running on to the line the speakers were running on and played YouTube in the background and it broadcasted it on the station.
Thank You,
Tom Raymond
Owner-Indie Radio Network
Mt. Pleasant, MI USA
http://www.indieradionetwork.net
